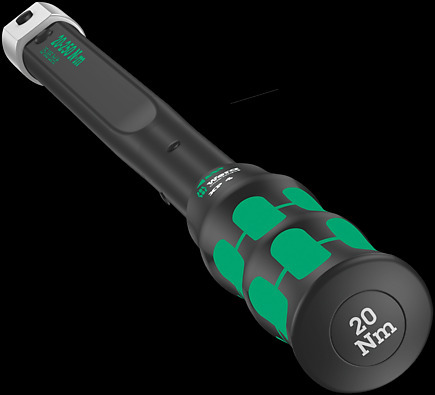

Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm

For right and left direction

For right and left direction

The Click-Torque wrenches for insert tools are suitable forclockwise and counterclockwise uses.
Customised pre-setting

Customised pre-setting

The Click-Torque XP torque wrenches with a pre-set torque value can be set to any value within the specified metered range in the test laboratory.
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
  • Pre-set click torque wrench in unmistakable Wera design
  • Audible and tactile release mechanism when the set torque value is reached
  • Pre-set torque values can be changed within the metered range in the test laboratory
  • Measuring range: 20-250 Nm; precise to ± 2% as per DIN EN ISO 6789-1:2017-07
  • With square socket (14 x18) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
  • Pre-set click torque wrench in unmistakable Wera design
  • Audible and tactile release mechanism when the set torque value is reached
  • Pre-set torque values can be changed within the metered range in the test laboratory
  • Measuring range: 20-250 Nm; precise to ± 2% as per DIN EN ISO 6789-1:2017-07
  • With square socket (14 x18) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control
Click-Torque Wrench series

Click-Torque Wrench series

We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools).
Pre-set click torque wrenches

Pre-set click torque wrenches

The Click-Torque XP torque wrenches are provided with pre-set torque values. These tools are ideal for all applications where the same torque and repeat accuracy is required.
Drive 14x18 mm

Drive 14x18 mm

For 14x18 mm interchangeable insert tools
Exact

Exact

Precise to ± 2% as per DIN EN ISO 6789-1:2017-07.
Release mechanism

Release mechanism

On reaching the desired torque value, an audible and tactile mechanism is triggered.
For right and left direction

For right and left direction

The Click-Torque wrenches for insert tools are suitable forclockwise and counterclockwise uses.
Customised pre-setting

Customised pre-setting

The Click-Torque XP torque wrenches with a pre-set torque value can be set to any value within the specified metered range in the test laboratory.
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
  • Pre-set click torque wrench in unmistakable Wera design
  • Audible and tactile release mechanism when the set torque value is reached
  • Pre-set torque values can be changed within the metered range in the test laboratory
  • Measuring range: 20-250 Nm; precise to ± 2% as per DIN EN ISO 6789-1:2017-07
  • With square socket (14 x18) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
  • Pre-set click torque wrench in unmistakable Wera design
  • Audible and tactile release mechanism when the set torque value is reached
  • Pre-set torque values can be changed within the metered range in the test laboratory
  • Measuring range: 20-250 Nm; precise to ± 2% as per DIN EN ISO 6789-1:2017-07
  • With square socket (14 x18) for interchangeable plug-in tools; clockwise and anti-clockwise torque-control
  • Torque
  • Pre-set

Article description

Torque wrench with pre-set torque value for all applications where the same torque and repeat accuracy is required. The torque value can be changed within the metered range. The robust release mechanism guarantees a clearly audible and tactile trigger signal when the set torque value is reached. Square socket for interchangeable plug-in tools for clockwise and anti-clockwise torque-control. A presetting which deviates from this value to a desired torque value within the specified metered range is possible on request.
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
Click-Torque XP 4 pre-set adjustable torque wrench for insert tools, 20-250 Nm, 20 Nm
Click-Torque Wrench series
Pre-set click torque wrenches
Drive 14x18 mm
Exact
Release mechanism
For right and left direction
Customised pre-setting
ar-view_view-in-ar-cookies-disabled

ar-view_view-in-ar-allow-ar-in-cookies
Code Nm Nm lbf. ft. mm mm mm mm mm mm mm inch inch inch inch inch Nm Nm lbf. ft. lbf. ft.
05075673001 1) 14x18 20.0 20-250 15-184 457 25.5 430.0 145 41 32 26 17 63/64" 5 45/64" 1 39/64" 1 17/64" 1 1/32" 20.0 250.0 15.0 184.0
05075673010 2) 1) 14x18 20.0 20-250 15-184 457 25.5 430.0 145 41 32 26 17 63/64" 5 45/64" 1 39/64" 1 17/64" 1 1/32" 20.0 250.0 15.0 184.0

1) Sk = Actual dimension of the test attachment; lk = Distance from the force application point to the test device axis

2) Any presetting which differs from this value, can be set to a desired torque value within the specified metered range upon request. The desired settings can be made in the following units: Nm, kgf. m, lbf. ft., ozf. in., dN. m, kgf. cm, lbf. in, in. oz, cN. m, gf. m, ft. lb, gf. cm, in. lb.
